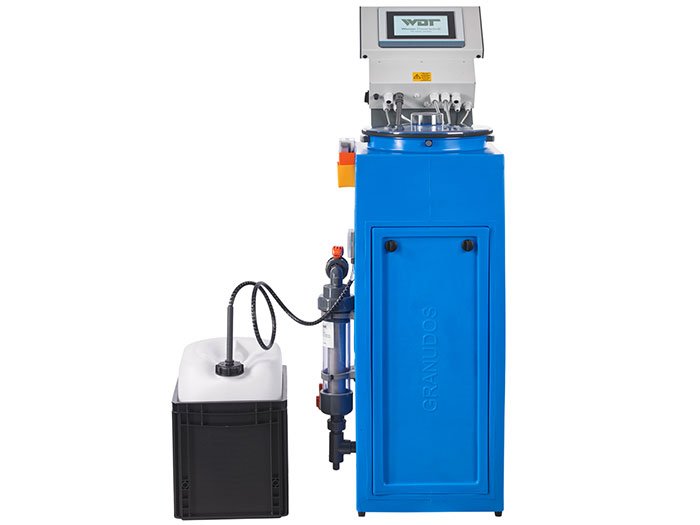

Granudos 15-PR Touch XL

Granudos 15-PR Touch XL swimming pool disinfection system uses IQ Granu-Chlor 700 granulated Calcium Hypochlorite and IQ Granu-cid acid controlled with autocntrol system PR TOUCH XL for pH and ORP. IQ Granu-Chlor 700 granulated Calcium Hypochlorite is dosed directly from the integrated hopper. IQ Granu-cid acid is dosed within the system from the container to correct the pH and to aid in cleaning. IQ Granu-Chlor 700 Calcium Hypochlorite and IQ Granu-cid are dosed separately at intervals to the dissolving system from where the very low concentrated chlorine solution is conveyed by a venturi nozzle to the pool water.
The autocontrol system PR Touch XL which can be operated via user-friendly 7“ Touch-Graphic display is pre-installed. The electrodes are integrated in the flushing tank of the dissolving system. An easy and reliable operation is guaranteed.

Housing:
Solid one part rotational sintered PE shape containing all functional parts.
Chlorine dosing:
Dosing hopper for chlorine granulate for max. 15 kg, dosing motor, dosing screw, knocker to support the dosing.
Acid dosing:
Peristaltic dosing pump, suction lance with empty report of the canister, dosing valve 3/8“ in the dissolving system.
Dissolving system:
Pre-filter d 75, flushing tank, booster pump app. 600 l/h at 0,8 bar, venturi, mixing cyclone. Monitoring of the pump by pressure switch. Monitoring of the suction performance of the venturi. Level monitoring in the flushing tank. Carrier for electrodes.

Controls:
• Coloured 7” Touch-Graphic display to indicate the current data and status of the unit
• Faults and alarms are illustrated by self-explaining icons
• All control parameters are adjustable to ensure optimal pool conditions
• Integrated test programmes for all functions
• Proportional control characteristic to ensure compliance with the selected set points
• Start-up automatic with pH preference dosing
• Input for external release, shock chlorination and ECO mode
• Alarm relay with non-volt changeover contact
• Operation languages: German and English
• Measuring value- and event storage (data logging)

Remote indication & access via browser driven devices (e.g. tablet or smartphone - terminal device not incl.)
• Indication of the measuring values, current operational states, errors and alarms
• Adjustment of the control and operation parameters

Suitable for Pools: 1,000 - 400,000 ltrs
Electrical Supply: 230 V/AC 50 Hz
Power Supply: 0,2 kW
Water Supply: DN20
Water outlet to injection point: DN20
Dimensions: 125 x 40 x 40 cm (H x W x D)
Weight: approx. 25 kgs
Chlorine Max Output: 0,1 - 2 kg/h
Acid Max Output: 1 l/h
Pre-pressure min: 0,2 bar
Back-pressure max: 0,8 bar
