Splash Aquatic Lift

The Splash Aquatic Lift is a designed for swimming facilities seeking to provide user friendly access to their swimming pools. A lifting capacity of 181.5 kg for the Standard lift and 136 kg for the Extended Reach.The Splash is a 24v battery powered and operated by a screw driven actuator. It features full mechanised left and right as well as up and down motion. It has arotation of 344 degrees. The design and durability of the system ensures consistent operation and minimises service problems.

The Splash is virtually maintenance free. The components are made from corrosion resistant materials, including powder coated stainless steel and aluminium construction. The unique seat of the lift was specifically designed to provide the user with the greatest possible safety, comfort and ease of transfer.

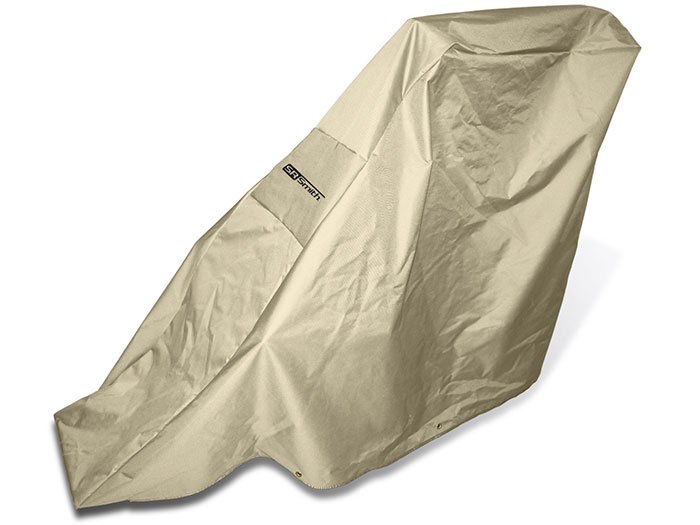

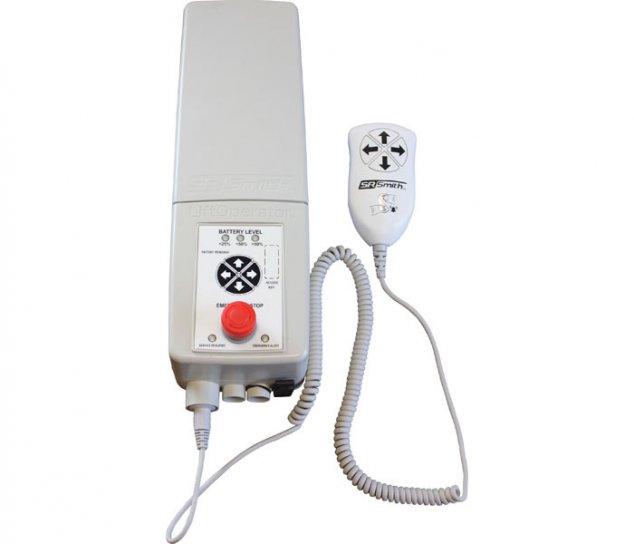

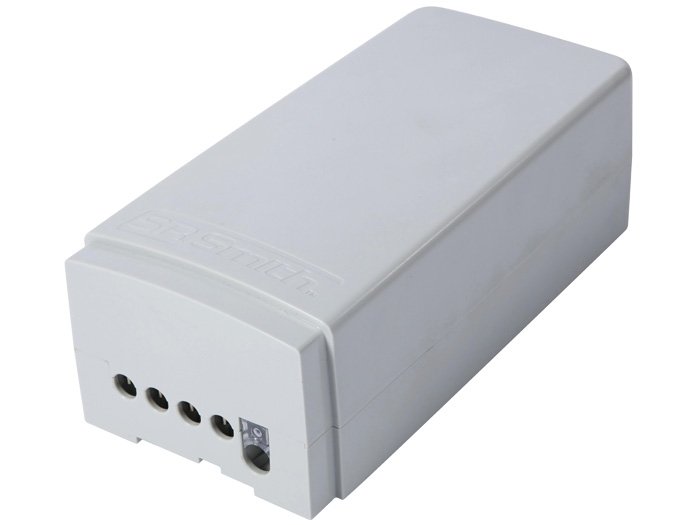

The hand control is water resistant, & allows either the user or the attendant to control its operation with ease. It has a rotation of 344 degrees. The LiftOperator control box and battery are water resistant. If the lift is stored for long periods, an optional cover is available for purchase and is recommended to use to protect the system.

The standard, moulded plastic footrest is removable and will float upwards to prevent damage if the user lowers the chair too low over the deck.

A sling option is also available. The sling can be used instead of the seat by undoing two bolts and removing the arm and seat assembly and replacing it with the Sling Jib. The Sling is then attached to the sling jib. The sling and Jib can be retrofitted to existing Splash, Pal and Pal2 lifts.

What's included:

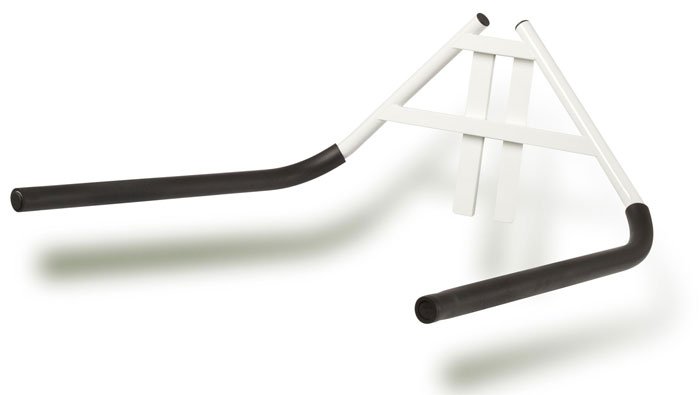

Splash! Lift, Hand Controller, Deck Anchor, Footrest, Caddie, Arm Rests, Battery Charger, Battery with Cover and Seat Belt Assembly.

Operation:
The client accesses the lift seat then using the left and right buttons on the hand controller rotates the lift over the pool then using the up or down button to raise or lower the seat. The client can then be floated off the seat. Getting out is just as simple.

Installation:

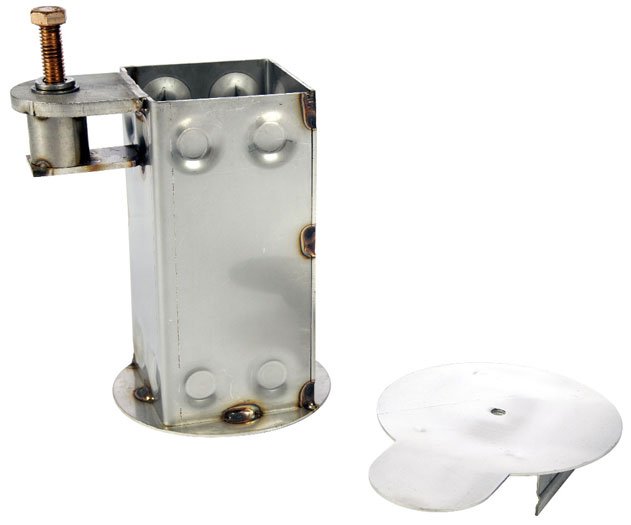

The typical installation usually is attached to the pool deck using a square deck anchor that will be cored into the pool deck.

Optional Extras:

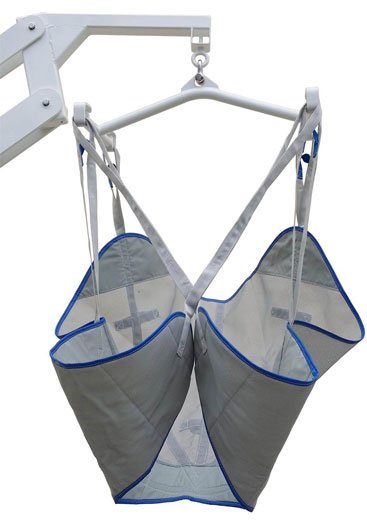

Sling and Jib Attachment
Use instead of the seat to lift and lower.

Spine Board Attachment
The Spine Board Attachment works with any standard spine board (not included). Simply remove the chair assembly by pulling the attachment pin and replace that assembly with the Spine Board Attachment. One person can easily extract an injured swimmer from a pool.
