Caddy Pro

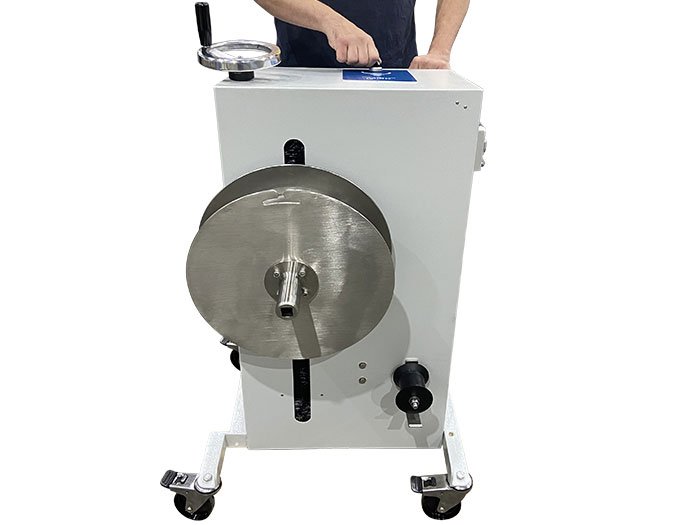

Caddy Pro Portable Drive System for Commercial Pools to recover and deploy commercial pool cover systems. Daisy Commercial Caddy Pro is a commercial pool solution that has been designed and built as a robust portable drive to recover, and deploy, single or multiple commercial Thermal Foam or Solar pool covers onto Daisy Commercial Roller systems. The Caddy Pro is a fully self contained, stand alone Stainless Steel console that suits any commercial pool from a single cover and roller, to multiple pools (e.g. 50m and 25m within the same complex) with multiple cover and roller systems.

The Caddy Pro’s 24v heavy duty internal batteries will usually last for weeks of work however, as there is an inbuilt battery charging system (powered by normal 10A GPO), we advise to simply park and place the Caddy Pro on charge when it is not in use.
With tilt and overload protection, along with normally off switching (the unit will only work when a button is pressed, it will stop when you release the button), this simple yet robust system is designed to make every pool operator’s life easier and reduce OH&S risk that may occur with manual roller usage.

Simple height adjustment allows the operator to fine tune the drive height to suit the rollers within the pool area. The Caddy Pro can be used for all Daisy Commercial rollers with a 20mm square drive on them and can be built to suit the Daisy Commercial Under Bench Rollers’ lower height.

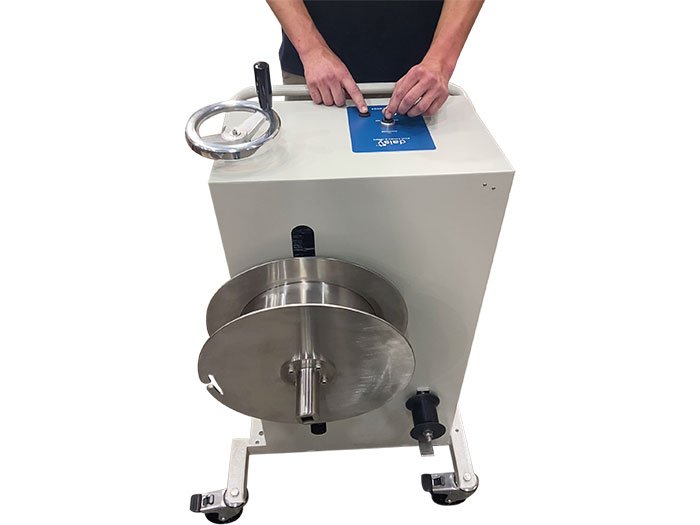

The Caddy Pro drives forward and reverse with the push of a button so once it is on the drive of the roller, simply press the button to recover the pool cover back on to the roller. The Caddy Pro console handle has been ergonomically designed to make lining up the internal square drive easy.

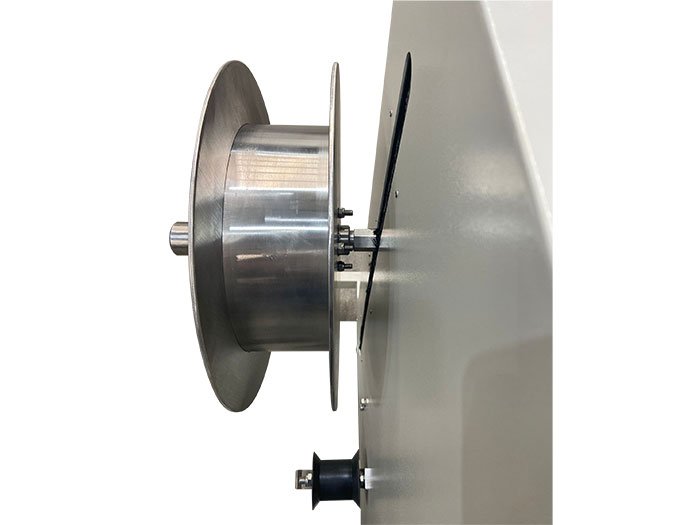

The drive drum slides onto the external square drive of the roller while using the simple height adjustment then, with the press of a button, you are recovering the pool cover in no time at all.

Deploying the pool cover is a breeze!

1) Attach the haul cord to the cover
2) Take the Caddy Pro to the opposite end of the pool, approximately in the centre of the cover (2-3 metres away from the pool water edge)
3) Feed the haul cord under the bottom idler roller then up to the back of the drive drum and hook the haul cord over the cut out finger of the drive drum.
4) Then, simply push the button to haul the cover onto the pool. The recover drum simply slides out to the free wheel so you can remove the haul cord ready to deploy the next cover.

The Caddy Pro, has recently had an upgrade!
One of the major changes in Caddy Pro is that the reversing solenoid has been replaced with an electronic drive card, which has improved the reliability and operation of Caddy Pro. The card also includes features such as soft start of the motor, operator motor speed control, and enhanced current limiting protection of the motor. The card provides room for future features like on/off LEDS, fault LED, stop button input, limit switches, and remote control. Additionally, the bolted front panel has been replaced with a hinged door that comes with a lock and key. This makes it easier for users to access the internal components of the product.

Another notable improvement in Caddy Pro is the replacement of the forward and reverse single lever switch selector with a drum rotation/direction rocker switch and a run push button. This makes the operation of the product more intuitive and user-friendly. The introduction of the motor speed control potentiometer adds to the overall convenience of the product.

The electrical backplane anchor bolts have also been changed from stud welds to independent fasteners to simplify the manufacture process. The product now comes with a drop pin kit for clients who require an anchor system during operation. Additionally, the finish of the product has been improved with a powder-coated finish and 304 stainless steel replacing 316 bare plate, making it more aesthetically pleasing and easier to clean.

Finally, Caddy Pro has been enhanced with the introduction of 25mm vent holes to improve air flow through the cabinet and a fuse to protect the charger from damage in case the operator tries to run the product while charging is in progress. The idler pulley has also been moved forward to allow adjustment from standard height rollers to under-bench rollers, with a height adjustable range of 250mm to 725mm.

With its new features and improvements, the Caddy Pro is even more convenient, reliable, and aesthetically pleasing than it was before. Get your hands on the updated Caddy Pro today and experience the difference for yourself!
