Otter Water Polo Scoreboard

The Otter Indoor/outdoor LED Water Polo Scoreboard provides wireless scoring capabilities, and includes GAME TIME, HOME, GUEST, PERIOD, TIME OUTS LEFT, SHOT TIME and EXCLUSIONS displays depending on model.
An integrated internal antenna allows for reliable wireless communication to any WA-2 System 6 connected.
Integrated time of day functionality allows the scoreboard to act as a clock when control console is off.
The Weather-proof digits and electronics are housed in a powdercoated aluminum chassis, which provides excellent corrosion resistance. The High-visibility 5" digit Red LED digits automatically adjust to ambient light to provide optimal viewing.
The high-strength polycarbonate digit covers protect digits and antenna from weather and impact. 3" Vinyl artwork captions are applied directly to polycarbonate digit covers.
The Scoreboard's assembly consists of a single 5052-alloy aluminum display chassis with internal digit brackets and is shipped as one piece for ease of handling and installation

The board can be mounted in a variety of ways, mounted directly to a flat wall, corner wall, vertical beam or portable caddy.
Mounting tabs are attached to the board in one of three locations. Simply lift the display into place, where it is then easily bolted to the wall or support structure. Refer to Installation Guide for more information regarding mounting procedure and details.
All digits and electronic components are accessed through the front face of the scoreboard. The digit covers are secured by two removable end caps.
RS-232 data jacks are located on the bottom or rear of the display for wired RS-232 communication with the System 6.

An optional, adjustable 125dB horn provides clear, audible end-of-game and other notifications.
115 VAC – 230 VAC, 50/60 Hz, 280 W.
IP53 Rating

Otter Basic Water Polo Scoreboard PSPL4580:
Size: 1070 x 1220 x 110 mm (H x W x D)
Weight: 22.68 kg

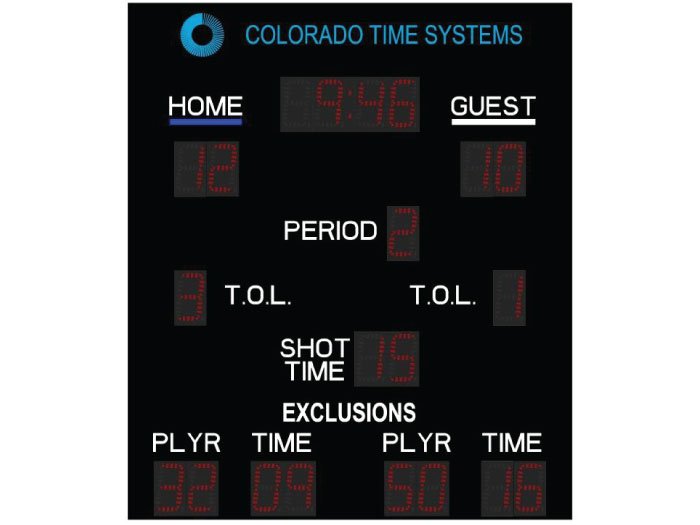

Otter Basic Water Polo Scoreboard with 2 Exclusions PSPL4581:
Size: 1420 x 1220 x 110 mm (H x W x D)
Weight: 27.22 kg

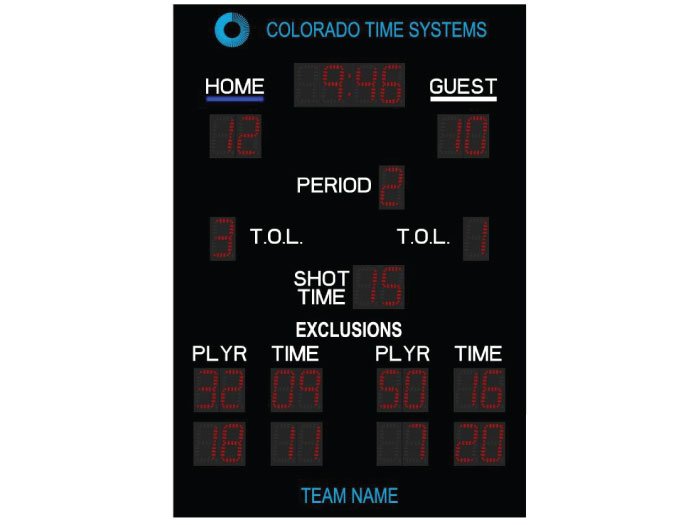

Otter Basic Water Polo Scoreboard with 4 Exclusions PSPL4582:
Size: 1780 x 1220 x 110 mm (H x W x D)
Weight: 31.75 kg

Custom Options Available:
Advertising/identification sign panels
Decorative accents
Add-on video display panels of various sizes
