Lovibond MD110 Photometer with Bluetooth®

The Lovibond® MD110 uses high quality interference filters with long life LEDs as a light source in a transparency sample chamber. This unit supplies accurate results very quickly & is easy to operate. It’s ergonomically compact waterproof design makes it safe to use as a counter unit or on site. Testing is performed using Lovibond® tablet reagents with long term stability & a shelf life up to 10 years. (OTZ) One Time Zero allows the user to zero once and perform all tests.

The zero setting is held in memory. Scroll Memory avoids unnecessary scrolling for the required test method, the instrument memorises the last method used before switching off the instrument. When the instrument is switched on again, the scroll list comes up with the last used test method first.

Supplied in a carry case with tablet reagents, test cells, accessories, instructions and certificate of compliance. Use with the free app AquaLX® for Bluetooth® conectivity compatible with IOS® & Android™ based smartphones & tablets.

Chlorine: 0.01 - 6.0 mg/l
Chlorine: *0.1 - 10 mg/l
Bromine: 0.05 - 13 mg/l
pH: 6.5 - 8.4 pH
Total Alkalinity: 5 - 200 mg/l
Calcium Hardness: 0 - 500 mg/l
Cyanuric Acid: 0 - 160 mg/l
* High Range tablets sold separately.

Waterproof (IP68 1 hour at 0.1 metre)
4 x AAA batteries (included) approx. 17 hours or 5,000 tests.
Auto - OFF automatic switch-off
Backlit LCD display (on keypress)
Internal memory for 125 data sets
Bluetooth® interface fortest data transfer
Real time clock & date
155 x 75 x 35 mm (L x W x H)
Weight basic unit approx. 260 g

AquaLX® App

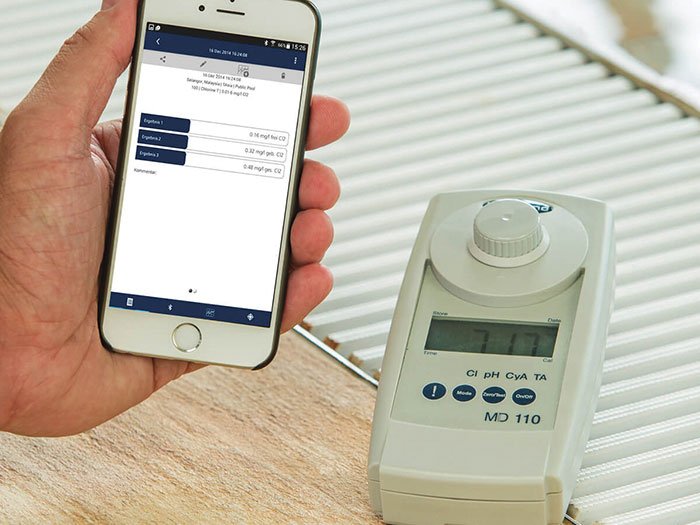

The AquaLX® app is the ideal supplement to Lovibond photometers. Creation of multi users, customers & measuring locations. Integrated data management. Sorting & representation of measurements according to sampling locations, customers, parameters, etc. With the Bluetooth®interface, measuring results for quick evaluation & processing can be transmitted to smart phones or tablets, so all data can be evaluated & allocated directly on site. The app displays all measurements in a clear graph with minimum & maximum thresholds & supports data export as an Excel® compatible CSV file.

System requirements:
Bluetooth® capable smart phone or tablet
Android™ version 4.3 or later, iOS® 7 or later

Get the App for free from Apple® App Store® and Google Play™ store.
